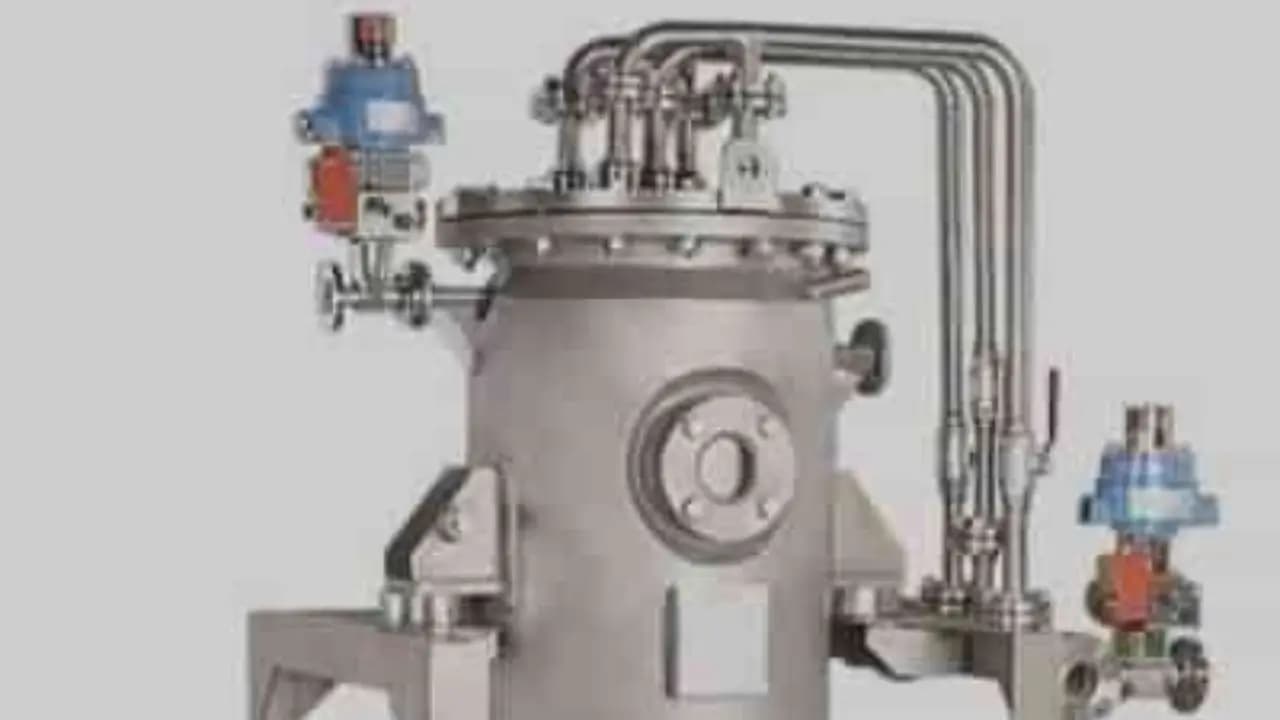

CONTUFILT-RN
Solving the Raney Nickel Filtration Challenge
CONTUFILT-RN™ is a specialized closed filtration system designed for efficient separation and recovery of Raney Nickel catalysts in hydrogenation processes. Engineered to handle highly alkaline, sticky, and slimy catalyst systems, it ensures reliable filtration without choking, while maintaining high recovery and process integrity.
High-Permeability Filtration & Catalyst Cake Management
Filtration
reaction mass passes through vacuum-fused open channel filter candles arranged in a tube bundle.
High permeability media
ensures smooth flow with low pressure drop even for difficult slurries.
Reverse flow cleaning
in-situ reverse flow prevents clogging and restores permeability.
Washing
integrated washing removes impurities from catalyst cake.
Gas-assisted discharge
catalyst discharged as slurry or semi-solid cake without system opening.
Closed loop operation
system cleaned and readied for next batch without exposure.
Low-ΔP Operation, Recovery & Process Containment
Proprietary vacuum-fused open channel metallic media
Designed for highly alkaline and sticky Raney Nickel systems
High permeability with low pressure drop
Zero holdup bottom design for complete liquid recovery
Fully enclosed system ensuring GMP compliance
No choking or blinding of filter media
Long media life with consistent performance
Hydrogenation Catalyst Recovery & Difficult Slurry Filtration
Pharmaceutical & API
- Raney Nickel catalyst separation in hydrogenation
- Batch processing with strict GMP requirements
Chemical Processing
- Filtration of highly viscous and sticky catalyst systems
- Hydrogenation reaction mass separation
Resource Recovery
- Catalyst recovery and reuse
- Minimization of metal losses
Specialty Applications
- High pH and difficult-to-filter slurries
- Processes requiring zero contamination and complete discharge
Design Basis & Operating Envelope
- Handles high pH, sticky, and slimy catalyst systems
- Low pressure drop operation
- Complete liquid and catalyst recovery
- Closed, contamination-free operation
Engineering Considerations
CONTUFILT-RN™ overcomes the limitations of conventional filtration systems in Raney Nickel applications by ensuring non-clogging performance, complete recovery, and reliable operation in highly challenging process conditions.
Documentation
Technical brochure
Tell us where to send it and we’ll email the PDF once the request is approved.
- CONTUFILT-RN: Raney Nickel Catalyst FiltrationRequest PDF
Every process stream has a different separation signature.
Share your feed characteristics and operating constraints. Our engineers will evaluate the appropriate treatment pathway and integration strategy.
Talk to an Engineer
