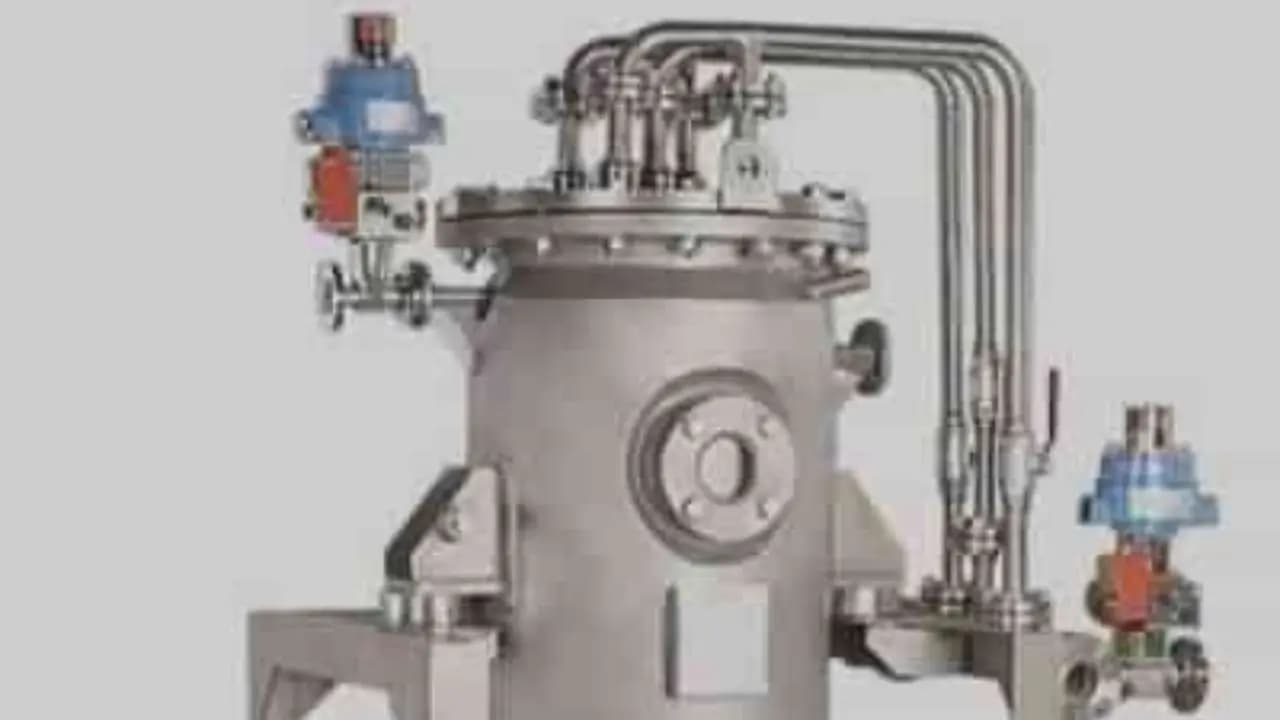

CONTUFILT-RN

How It Works

• Filtration - reaction mass passes through vacuum-fused open channel filter candles arranged in a tube bundle.
• High permeability media - ensures smooth flow with low pressure drop even for difficult slurries.
• Reverse flow cleaning - in-situ reverse flow prevents clogging and restores permeability.
• Washing - integrated washing removes impurities from catalyst cake.
• Gas-assisted discharge - catalyst discharged as slurry or semi-solid cake without system opening.
• Closed loop operation - system cleaned and readied for next batch without exposure.

Key Features

• Proprietary vacuum-fused open channel metallic media
• Designed for highly alkaline and sticky Raney Nickel systems
• High permeability with low pressure drop
• Zero holdup bottom design for complete liquid recovery
• Fully enclosed system ensuring GMP compliance
• No choking or blinding of filter media
• Long media life with consistent performance

Applications

Pharmaceutical & API

• Raney Nickel catalyst separation in hydrogenation
• Batch processing with strict GMP requirements

Chemical Processing

• Filtration of highly viscous and sticky catalyst systems
• Hydrogenation reaction mass separation

Resource Recovery

• Catalyst recovery and reuse
• Minimization of metal losses

Specialty Applications

• High pH and difficult-to-filter slurries
• Processes requiring zero contamination and complete discharge

Technical Capability

• Handles high pH, sticky, and slimy catalyst systems
• Low pressure drop operation
• Complete liquid and catalyst recovery
• Closed, contamination-free operation

Note

CONTUFILT-RN™ overcomes the limitations of conventional filtration systems in Raney Nickel applications by ensuring non-clogging performance, complete recovery, and reliable operation in highly challenging process conditions.
